Tools
Links to Information About Tools
Note that these may require registering on the website or membership.
RREC Forum on 20HP tools:
RREC 20HP Register discussion of tools:
Documents About Small Horsepower Tools
RREC 20HP Factory Tool Kit List
RREC 20HP Tool List
Examples of Various Small Horsepower Tools

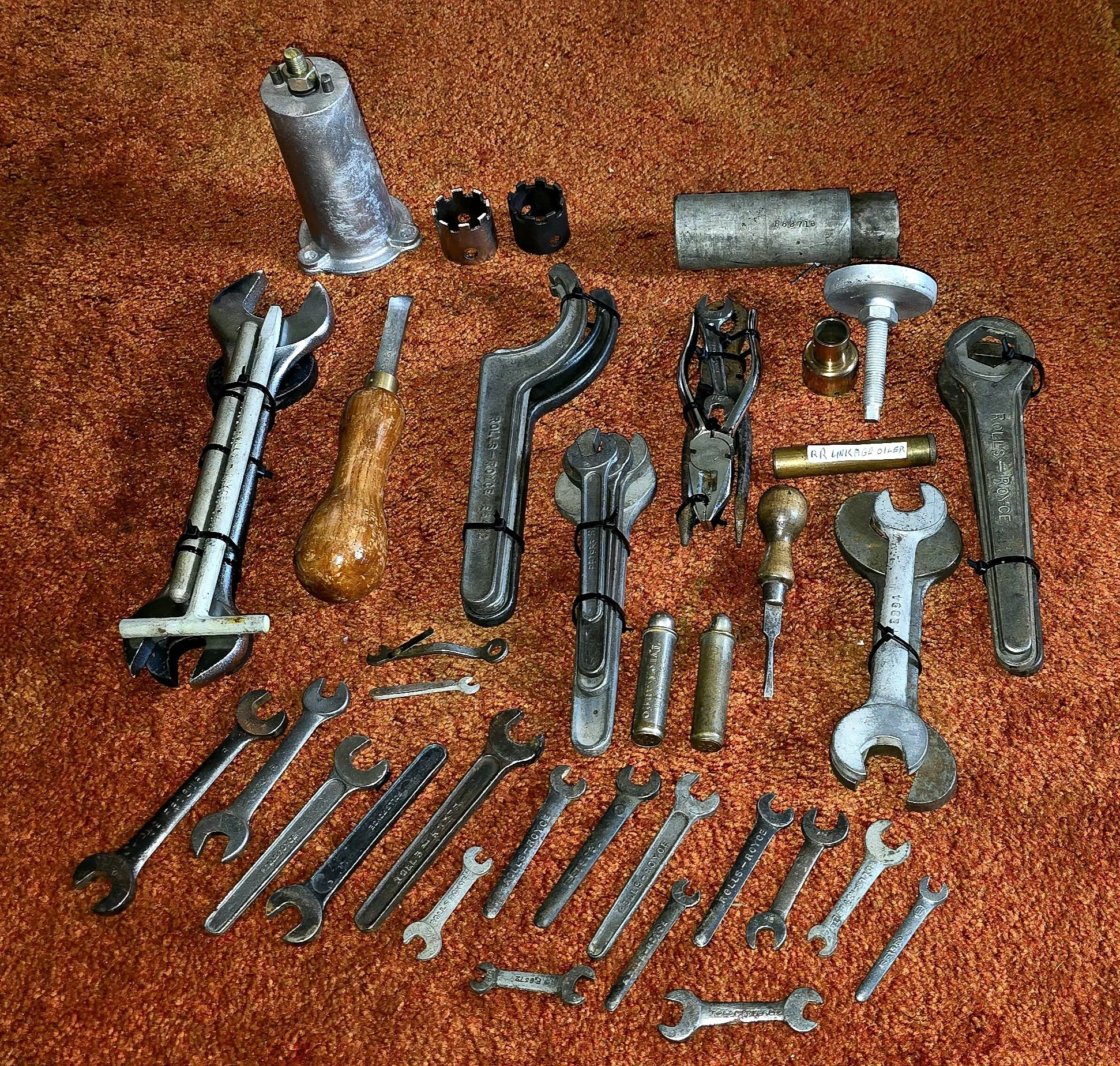

A set of 20hp tools.

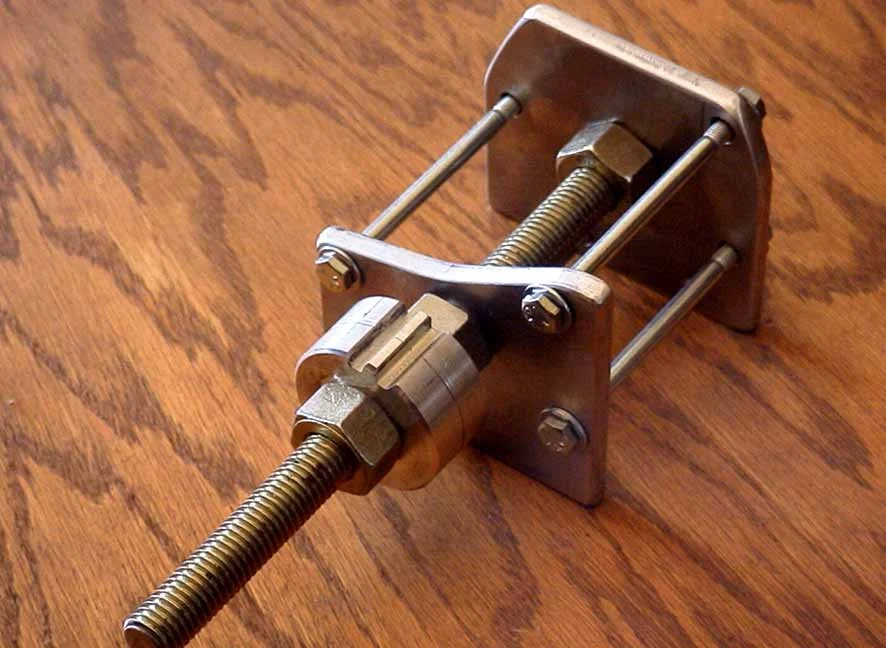

Flywheel Block - A stronger flywheel block shown capable of use when the oil sump is removed.

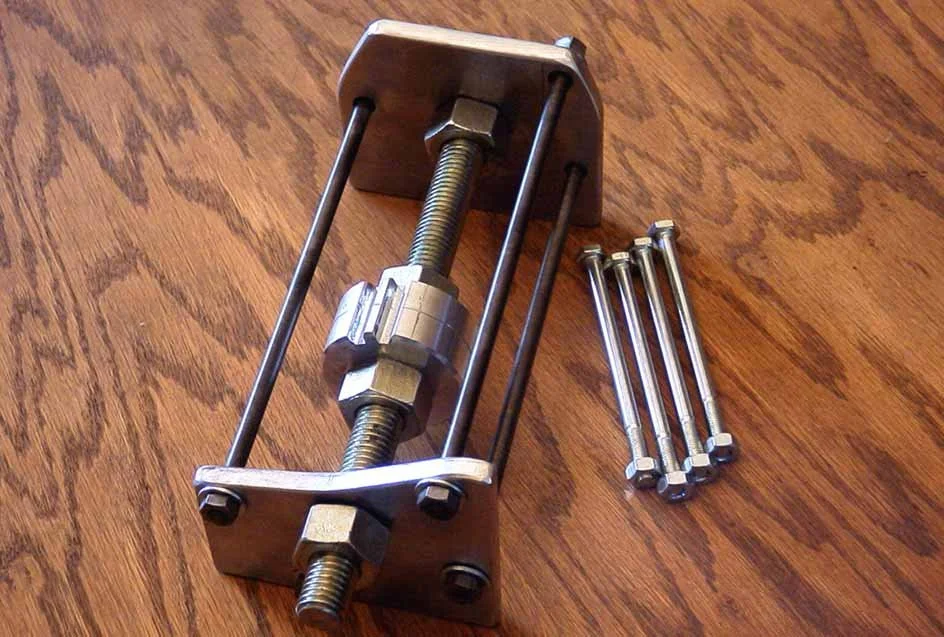

Flywheel Block - The same tool set to use when the oil sump is in place (note the long starter bolts in use).

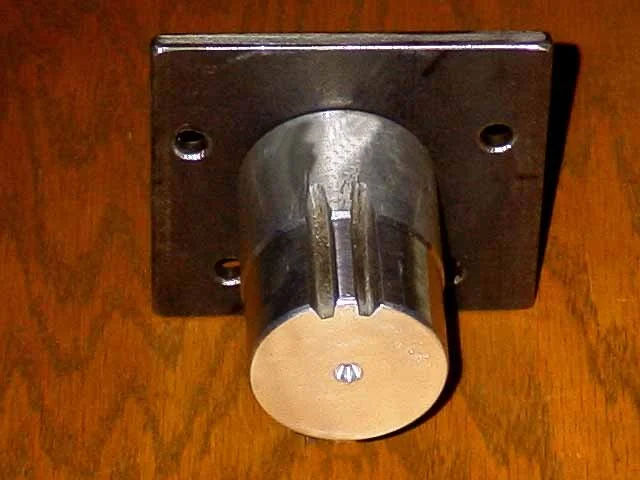

Flywheel Lock - Used in place of the starter, this locks the flywheel for removal of front damper, etc.

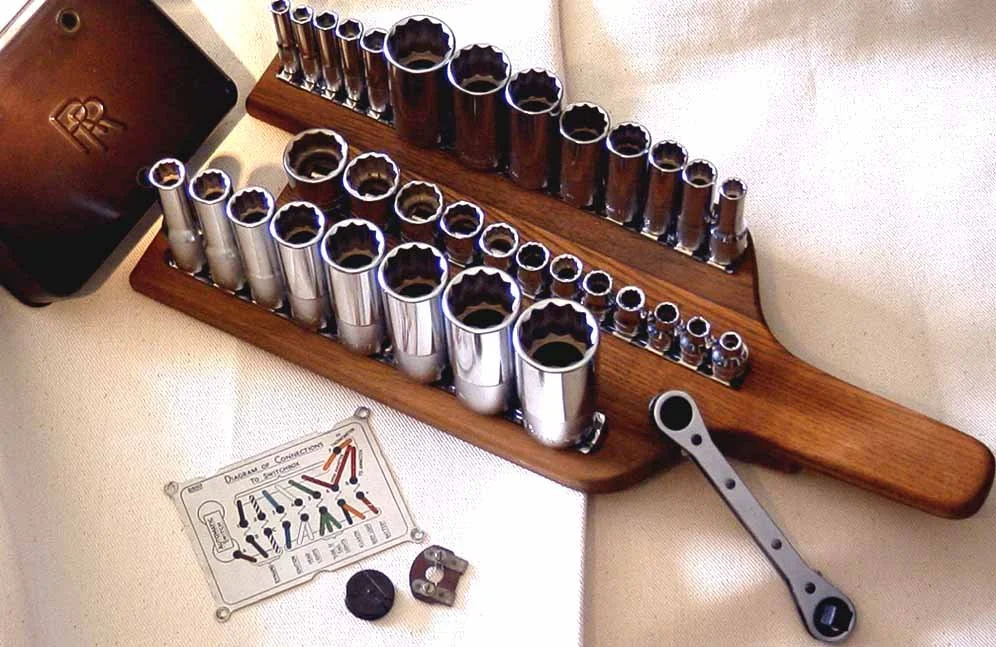

Brit Tools - British Sockets and Spanners are required of course. Mother said: "You can never be too rich, too thin, nor have too many tools.
Core Plug Tool - This is one of two sockets modified to remove the head core plugs. (Inquire for sizes)
Crank Gear Ready - Slipper Drive (& crankshaft gear) shown ready to be pulled. All of the fan pulley and parts have been removed. All of the timing marks must be inscribed before proceeding.

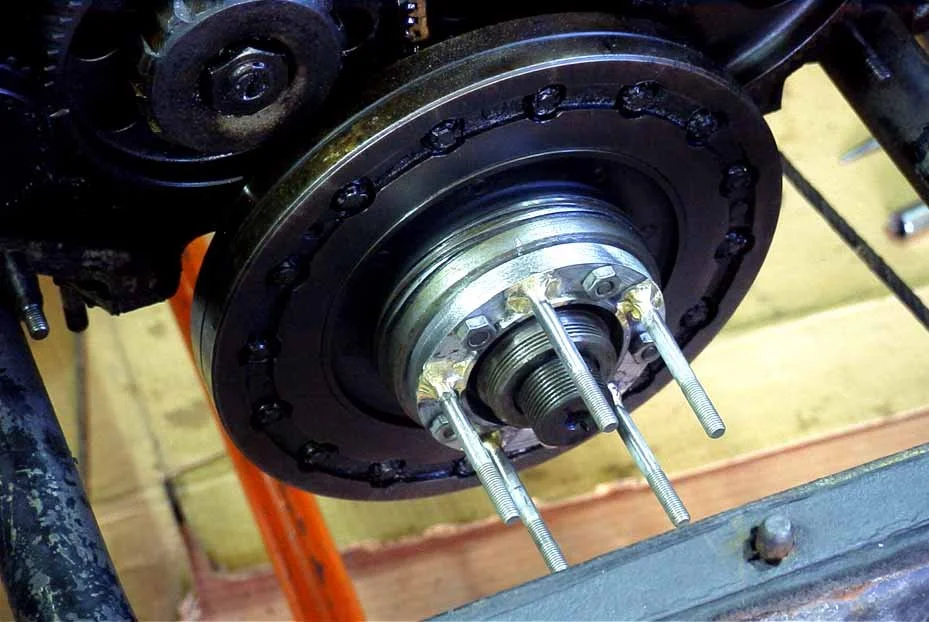

Crank Gear Puller - The first part of the fabricated puller is installed using nuts on the fan pulley studs. This ring has hardened studs brazed in place for the added strength.

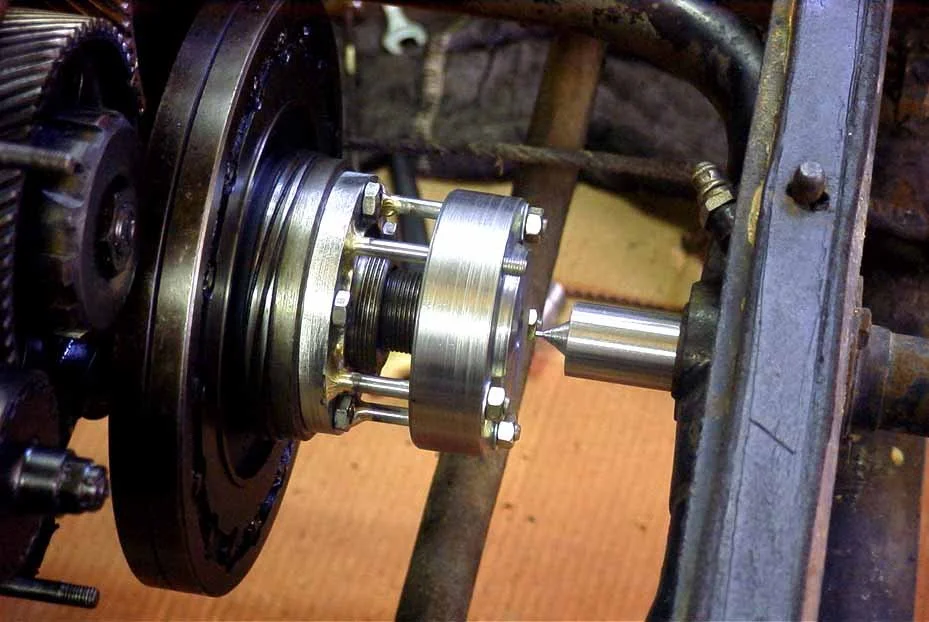

Crank Gear Puller - Now the puller is ready to use with the outer face flush to the end of the crankshaft (except one nut is left off to show threads required). Begin advancing these nuts in order about a quarter turn each time around.

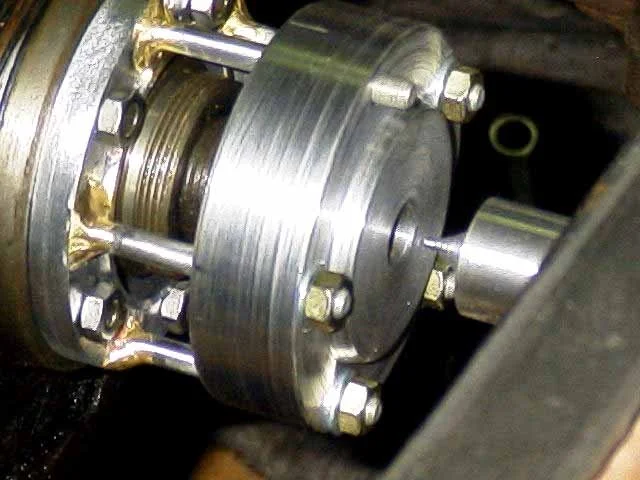

Crank Gear Pull Pin - Close up shows a drift shaft in place in the starter crank tube which may be "smacked smartly" as the nuts are brought up tight equally all around. At some point, a "rifle crack" will resound as the tapered shaft separates from the gear. Heat around the gear may be required as well.

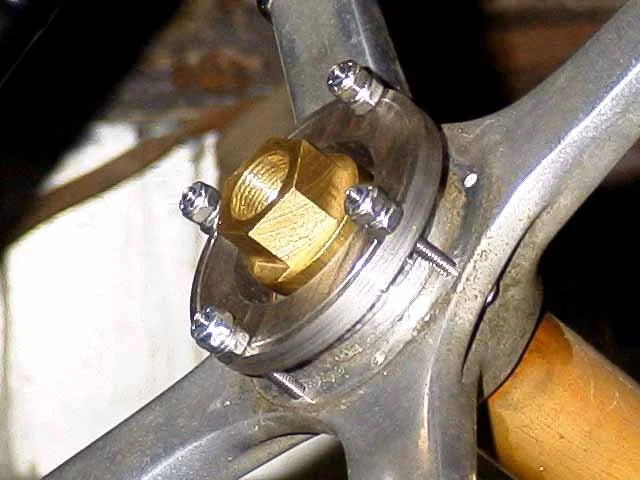

Steering Wheel Puller - Adaptors ready for a two or three prong gear puller to remove the Steering Wheel. The hub is shown to be a tapered spline upon removal.
Dunlop Wire Wheel Spoke Wrench

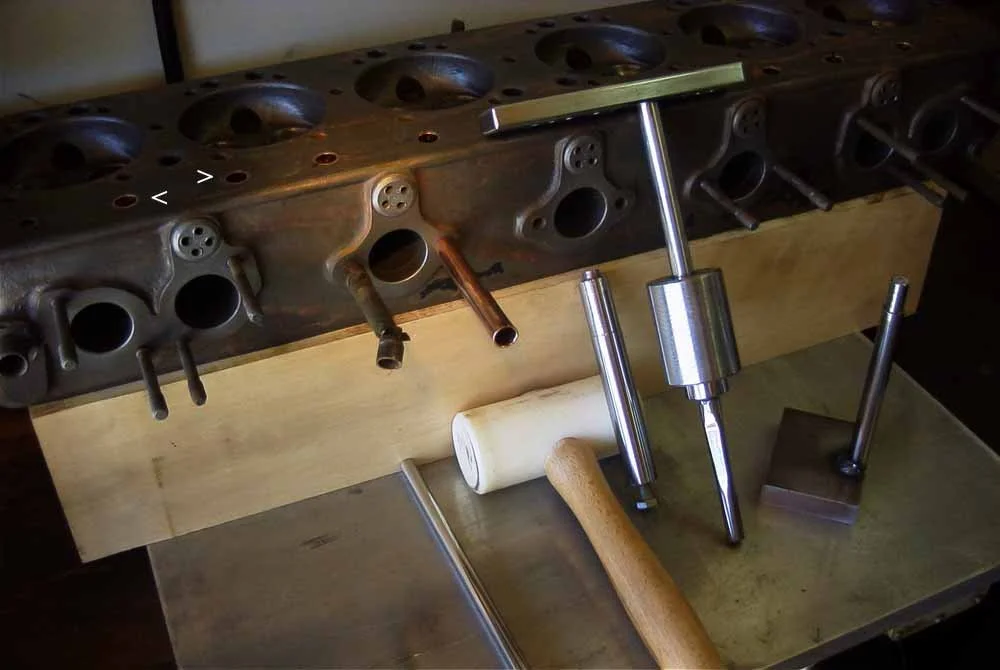

Head Tubes

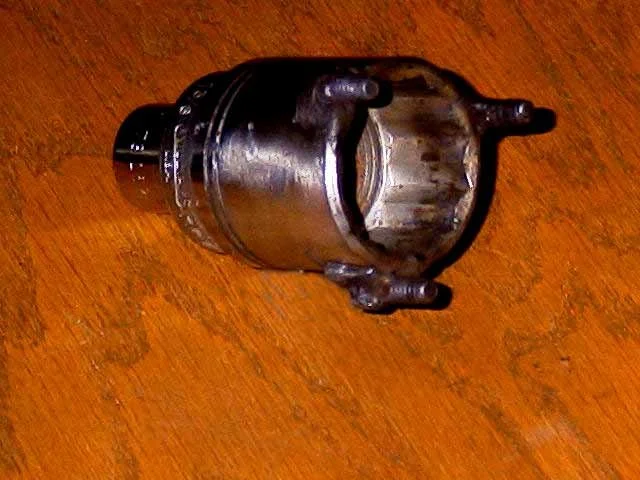

Rear Hub Tool - This 1 3/8" socket was modified to remove the rear ring holding part of the hub.

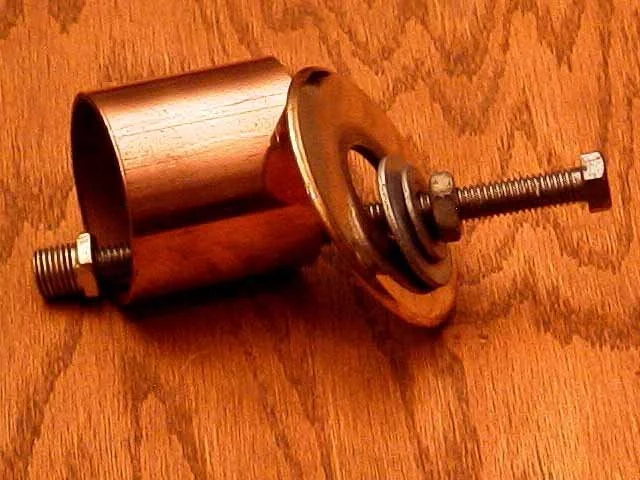

Rear Hub Extractor - This acts as a puller for the front and rear hub mechanisms (retracts).

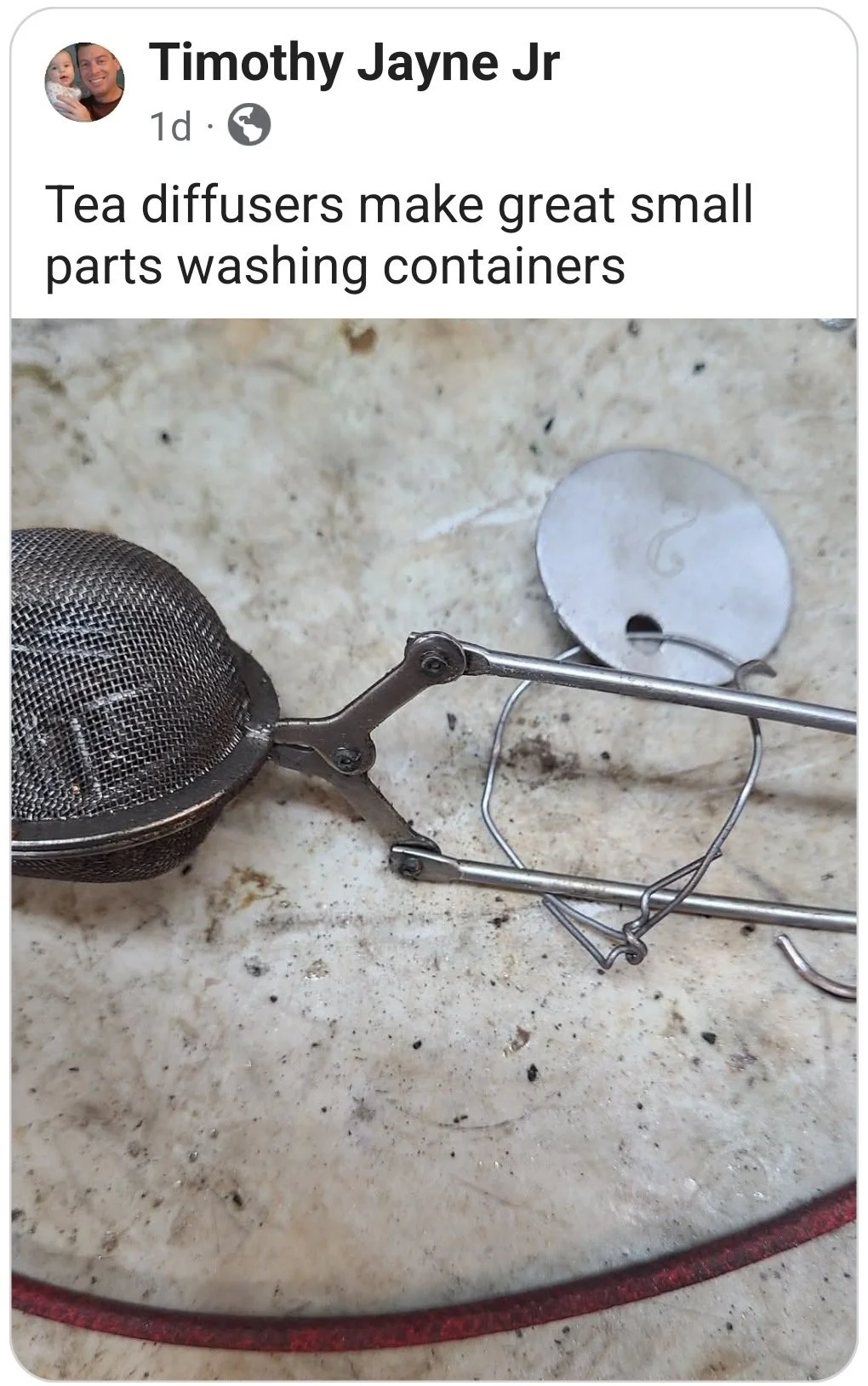

Tea strainer for washing small parts
Valve keeper
