Chassis
Clearly under construction

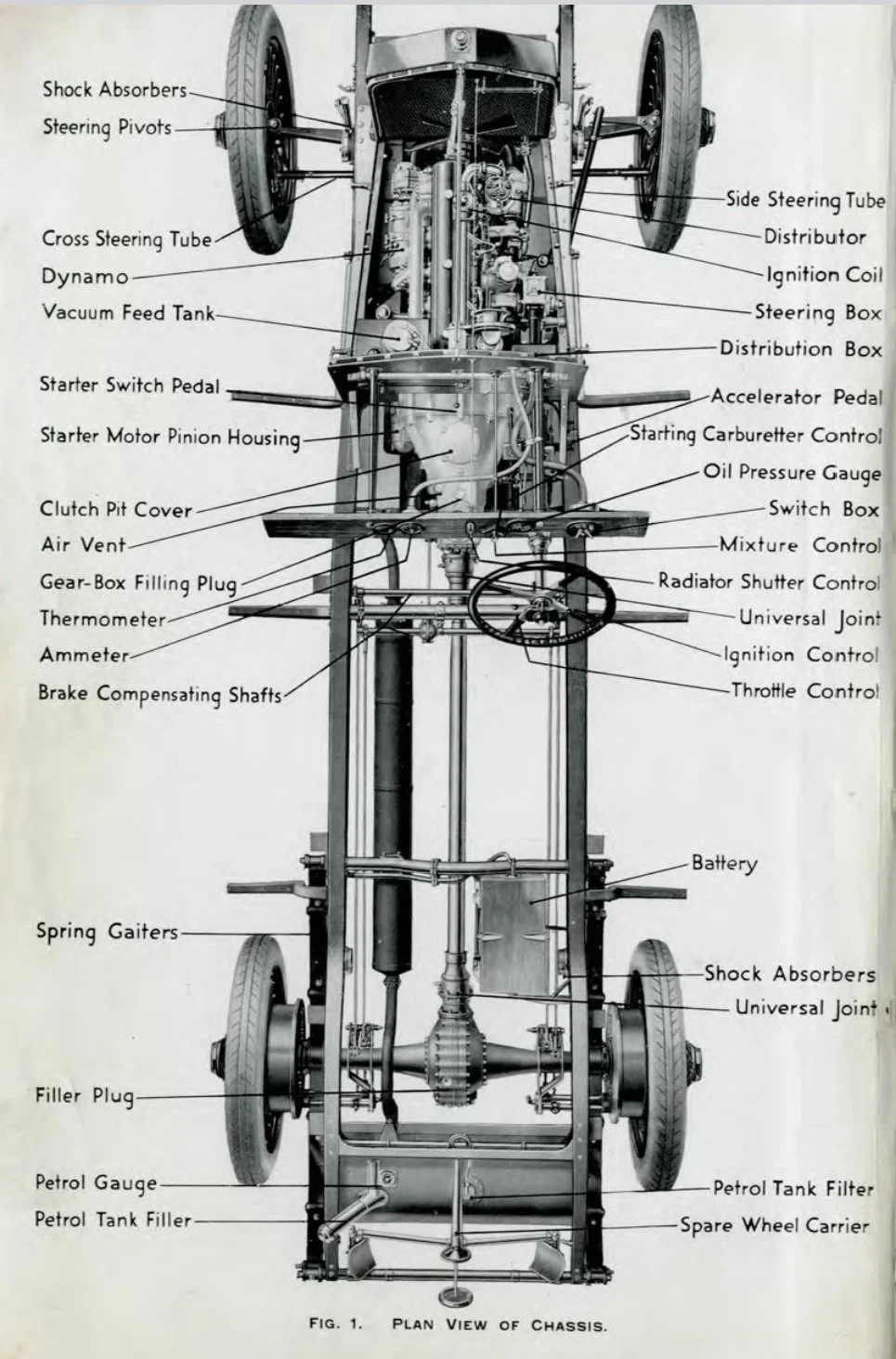

1922 20HP Chassis (click for larger view)

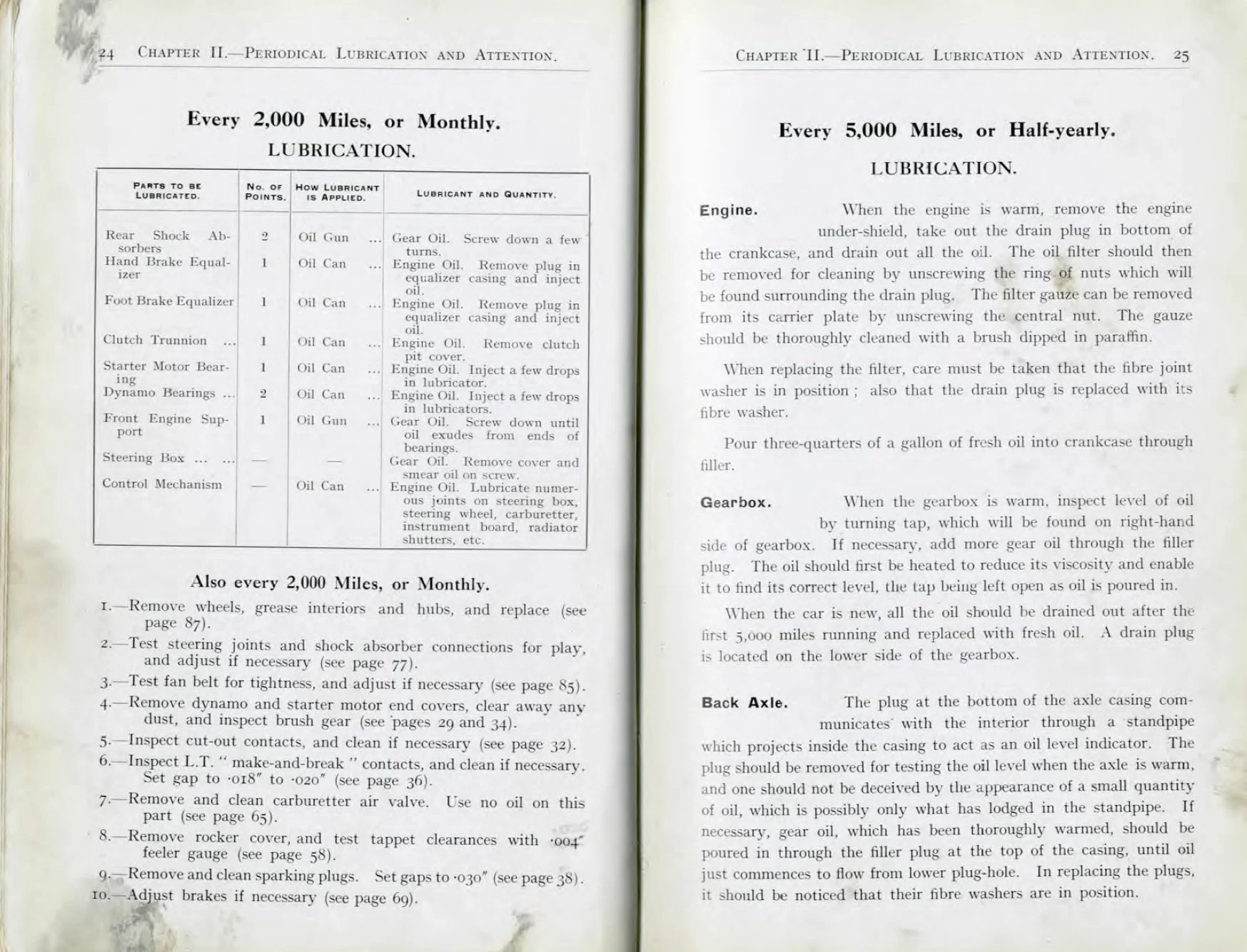

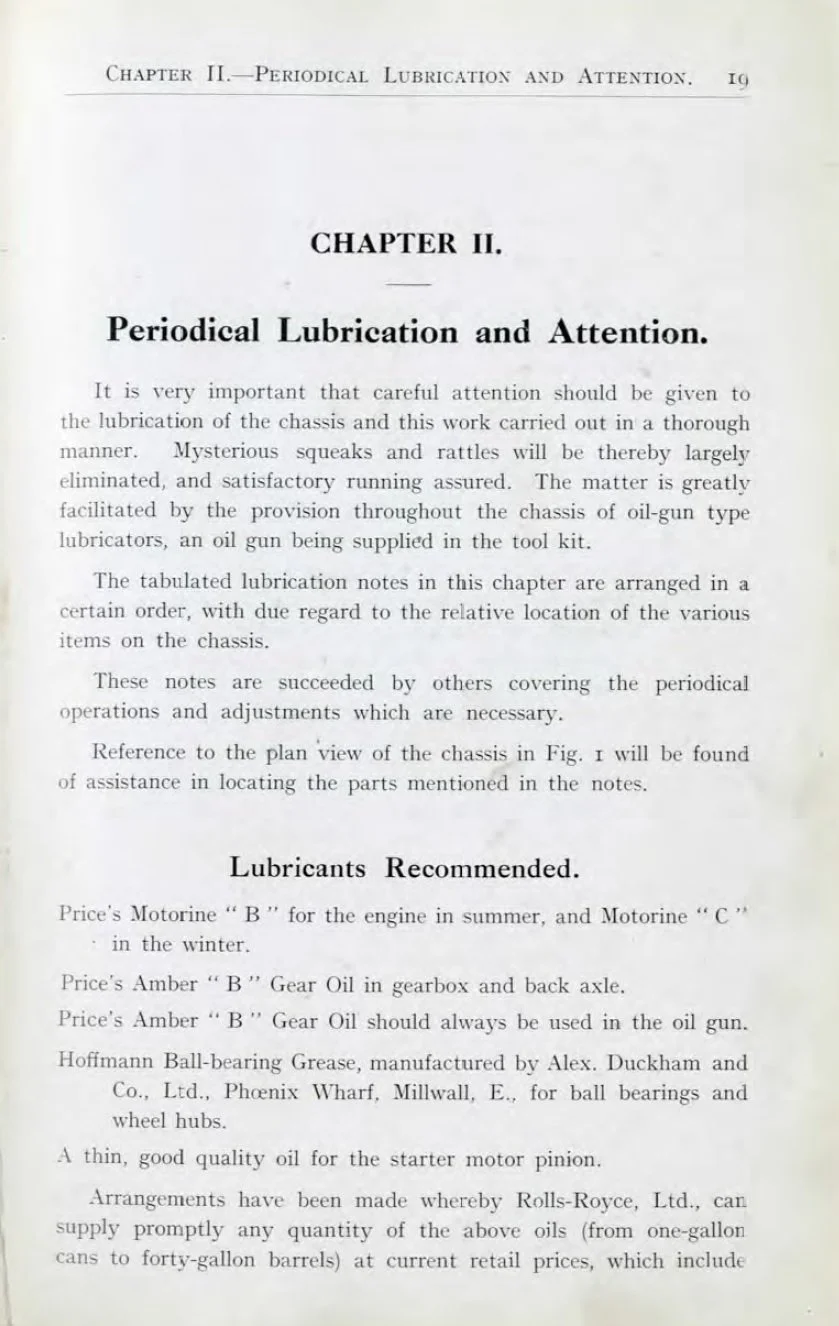

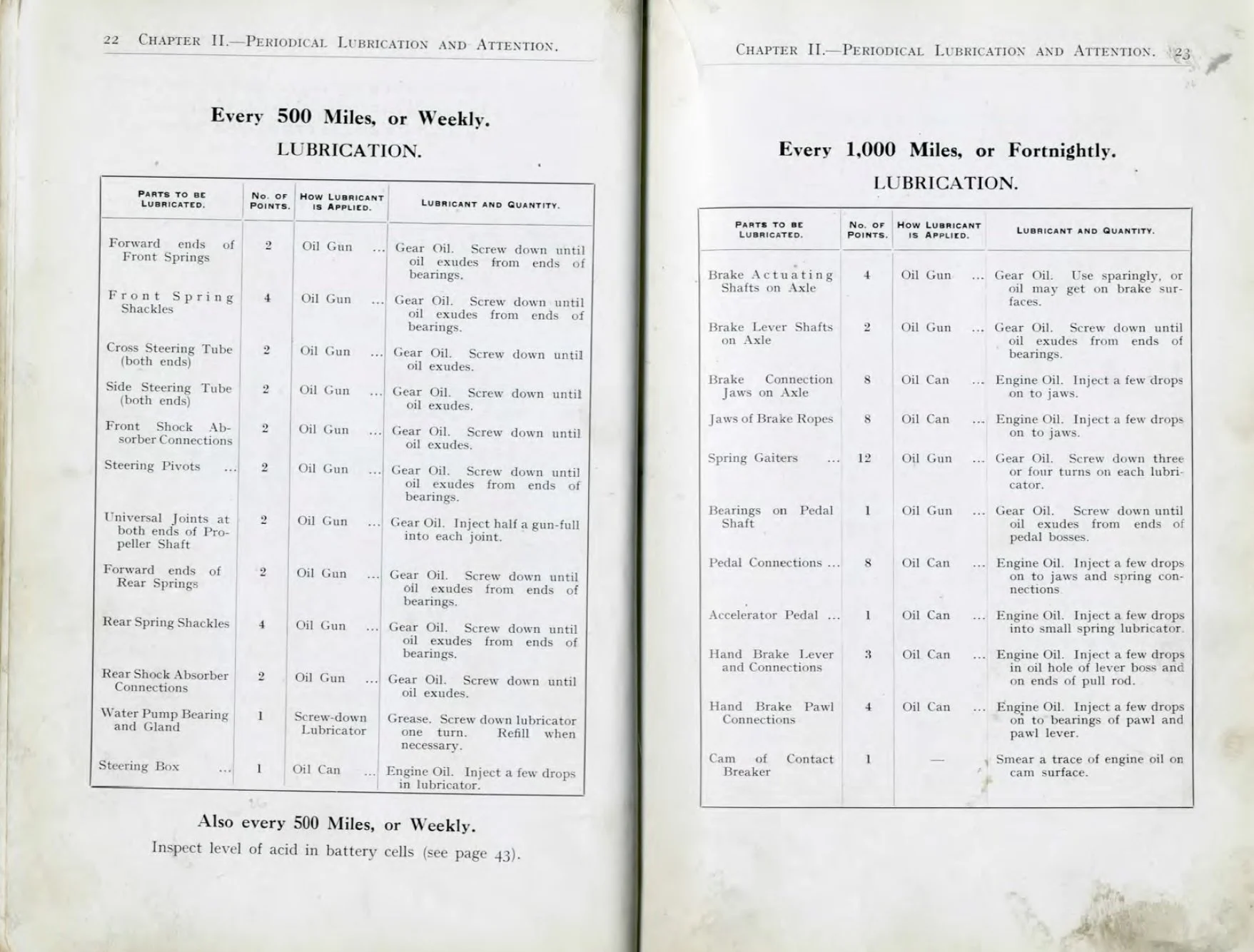

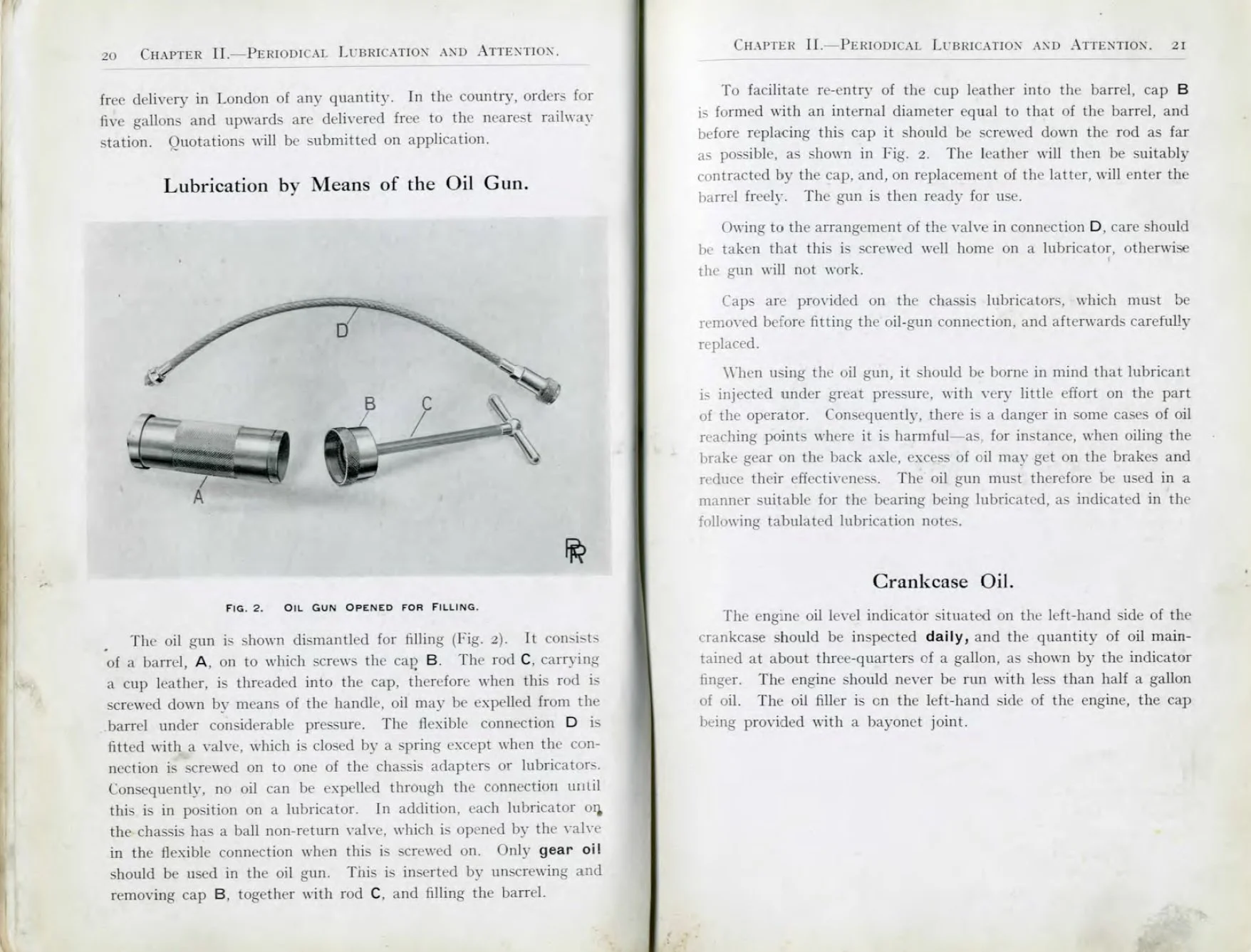

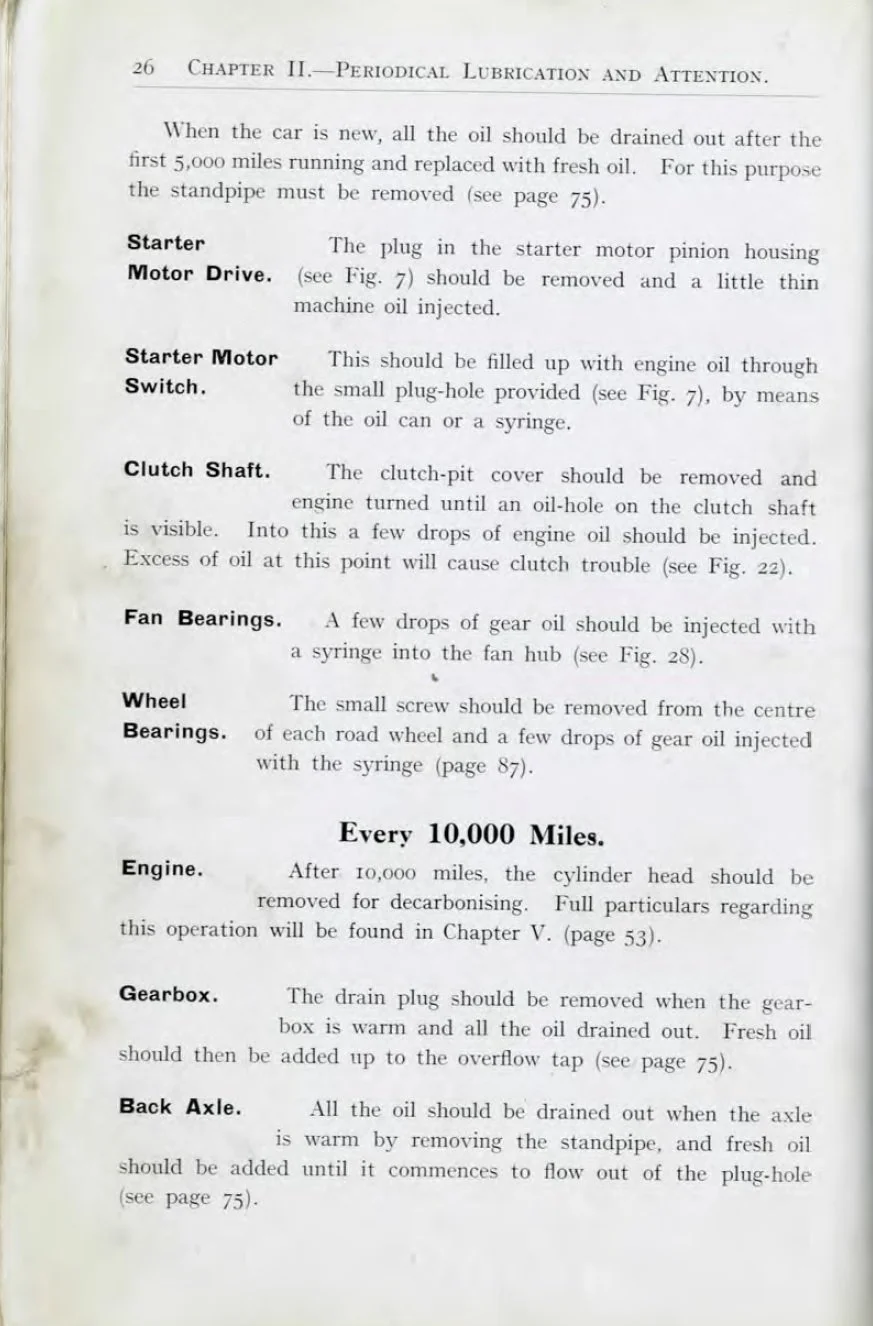

1922 20HP instruction manual - lubrication requirements
Click to view larger size

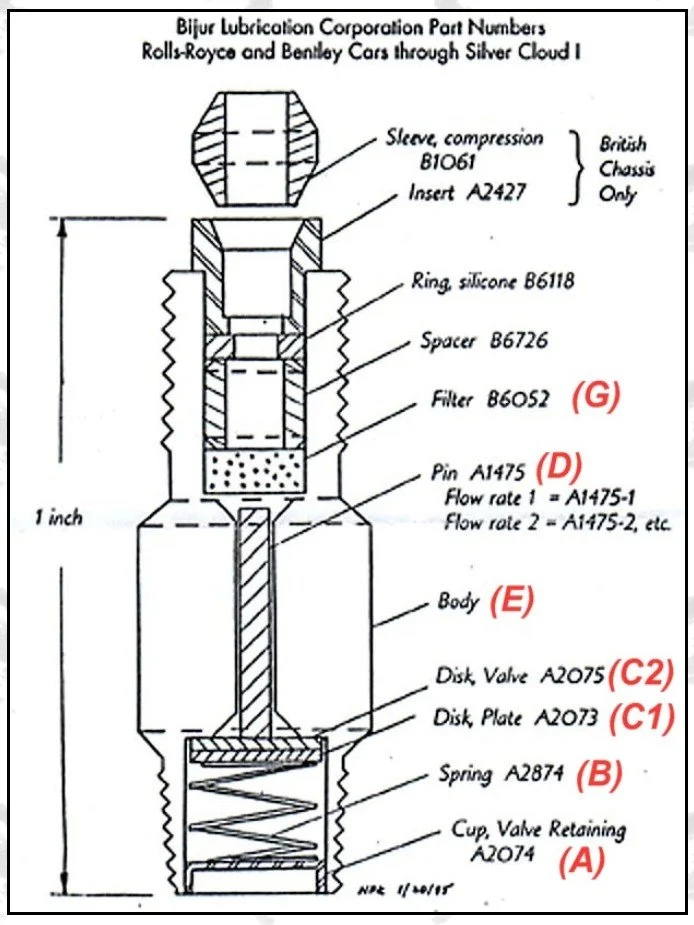

Bijur System: Drip Plug Overhaul Procedure
This is a total loss lubrication system which means that the oil is expected to end up on the floor. Excessive outpouring indicates wear and should be investigated. However, too many people try to achieve an oil-dry chassis; this is completely contrary to the design philosophy of the system.
Courtesy of Stephe Boddice
